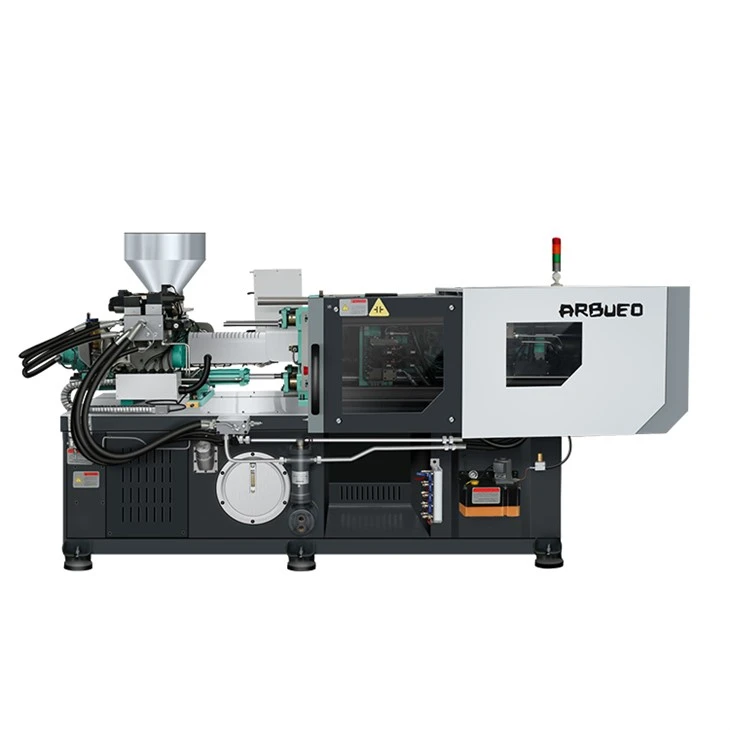

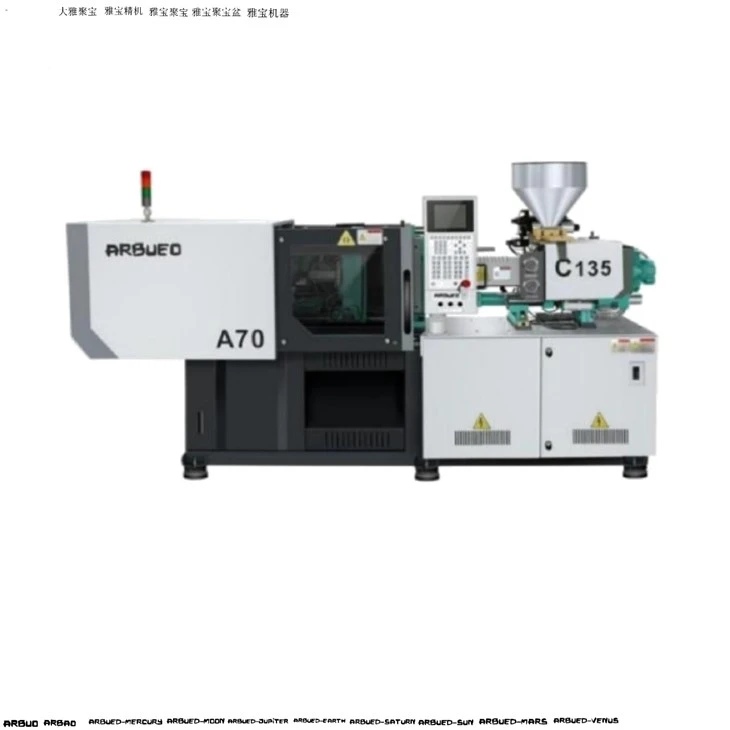

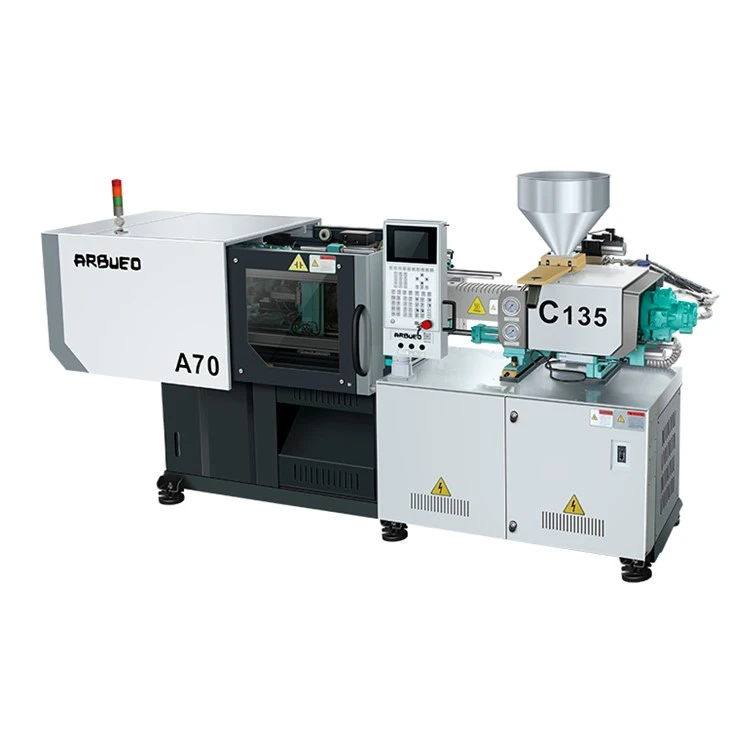

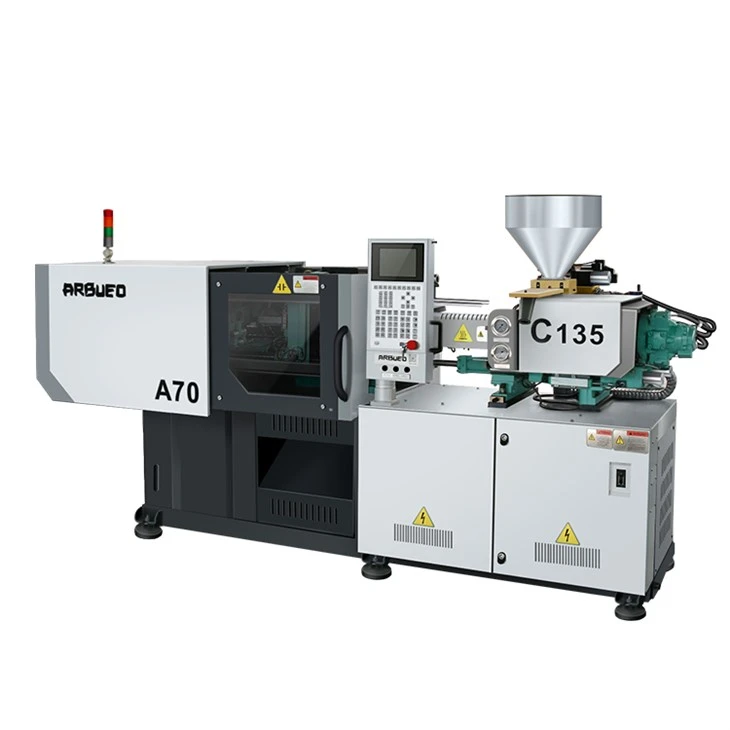

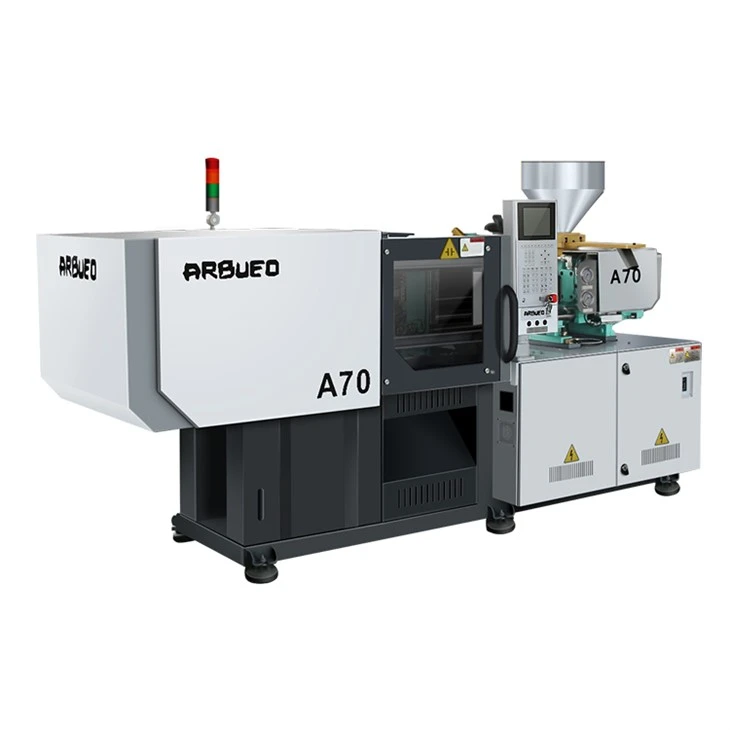

ARBUEO A70T mini yas txhaj tshuaj molding tshuab yog lub compact thiab ua tau zoo cov khoom siv yas tsim los tsim cov khoom yas ntawm ntau qhov ntau thiab tsawg hauv kev lag luam. Nws leverages advanced txhaj molding tshuab kom nrawm thiab raug txhaj cov ntaub ntawv yas molten rau hauv pwm, tsim cov khoom yas uas yuav tsum tau ua tom qab txias.
Parameter:
|
Qauv |
A70/C130 |
|||
|
INJECTION UNI |
|
A |
B |
C |
|
Ntsia taub hau |
MM |
28 |
30 |
32 |
|
Ntsia Hlau L / D piv |
L/D |
20.1 |
18.8 |
17.6 |
|
Theoretical txhaj tshuaj volum |
CM^3 |
72 |
82 |
94 |
|
Tua hnyavPS |
g |
65 |
74 |
85 |
|
Txhaj tshuaj |
Mpa |
179 |
156 |
137 |
|
Max ntsia hlau ceev |
rpm ua |
220 |
||
|
CIAMPING SYSTEM |
|
|
||
|
Clamping quab yuam |
kn |
700 |
||
|
Qhib stroke |
mm |
255 |
||
|
Kev ncua deb ntawm txoj hlua khi |
mm |
290x270 |
||
|
Max.mould qhov siab |
mm |
315 |
||
|
Min. pwm qhov siab |
mm |
80 |
||
|
Ejector stroke |
mm |
64 |
||
|
Ejector zog |
kn |
31 |
||
|
Lwm tus |
|
|
||
|
Max. Pump Siab |
Mpa |
140 |
||
|
Pump Lub cev muaj zog |
Kw |
11 |
||
|
Rhaub Fais Fab |
Kw |
6.3 |
||
|
Tshuab Dimension (L × W × H) |
m |
3.8x1x1.8 |
||
|
Tshuab hnyav |
t |
2.5 |
||
|
Hopper Peev Xwm |
Kg |
25 |
||
|
Roj Tank Peev Xwm |
L |
95 |
||
Nta:
- Miniaturized tsim: Nyob rau hauv sib piv rau cov tsoos yas txhaj tshuaj molding tshuab, lub mini yas txhaj molding tshuab boasts ib tug me me hneev taw, ua rau nws zoo tagnrho rau kev khiav hauj lwm nyob rau hauv tej qhov chaw. Nws qhov loj me ua kom yooj yim kev thauj mus los, kev teeb tsa, thiab txuag chaw hauv kev cob qhia ntau lawm.
- Kev ua haujlwm siab: Nruab nrog cov txheej txheem hydraulic siab, lub tshuab yas txhaj tshuaj yas mini ua tiav kev txhaj tshuaj nrawm thiab tswj kev txhaj tshuaj meej, ua kom cov yas txhaj tshuaj nrawm thiab cov khoom lag luam raug.
- Multifunctional: Cov cuab yeej no muaj peev xwm tsim ntau hom thiab cov duab ntawm cov khoom yas, nrog rau cov khoom, ntim, thiab cov khoom siv. Cov neeg siv tuaj yeem kho cov pwm thiab txhaj tshuaj raws li lawv cov kev xav tau tshwj xeeb, ua raws li cov kev xav tau ntawm cov khoom sib txawv zoo.
