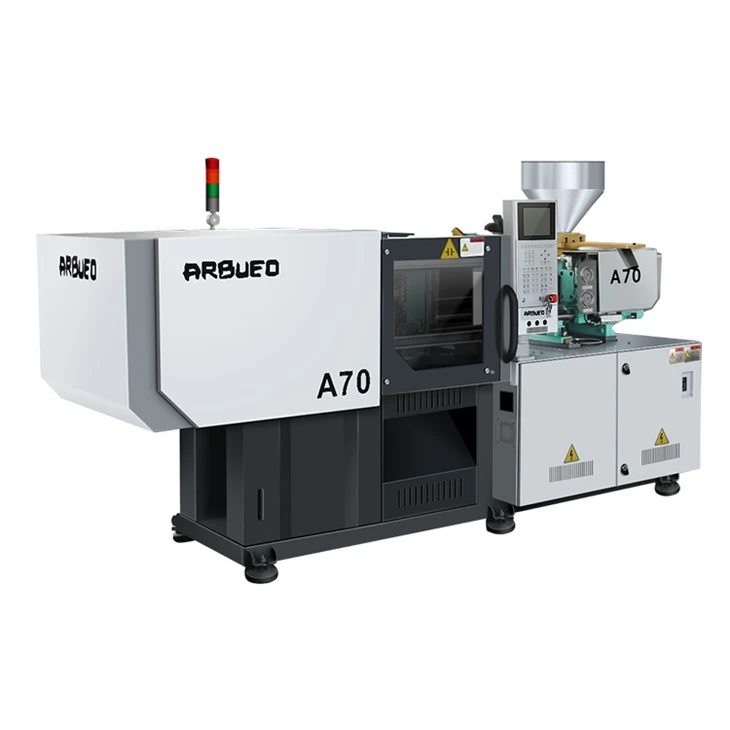

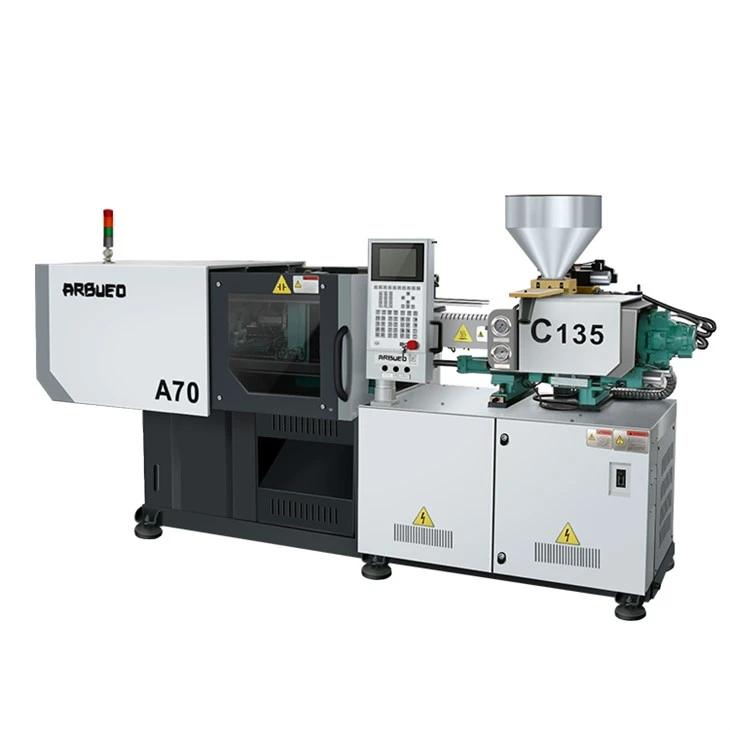

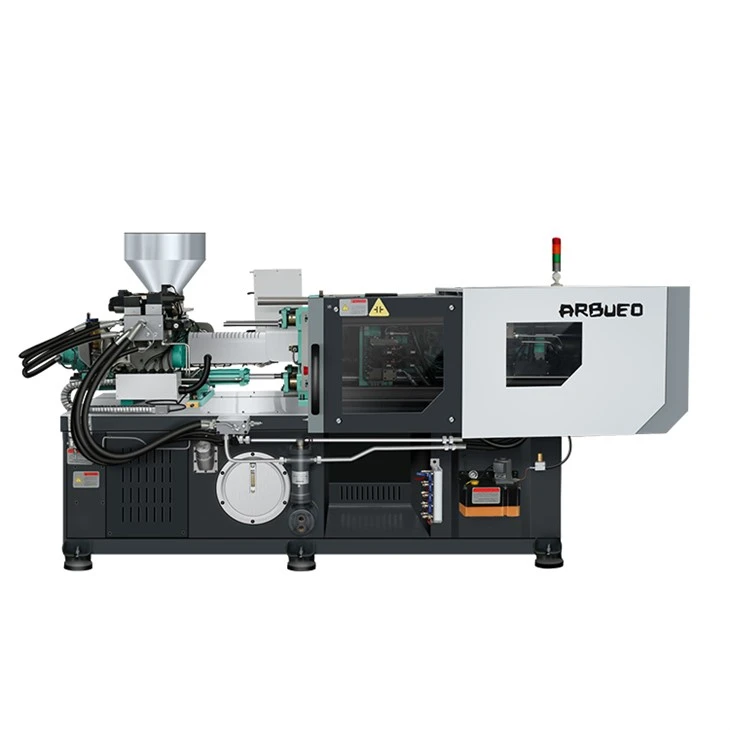

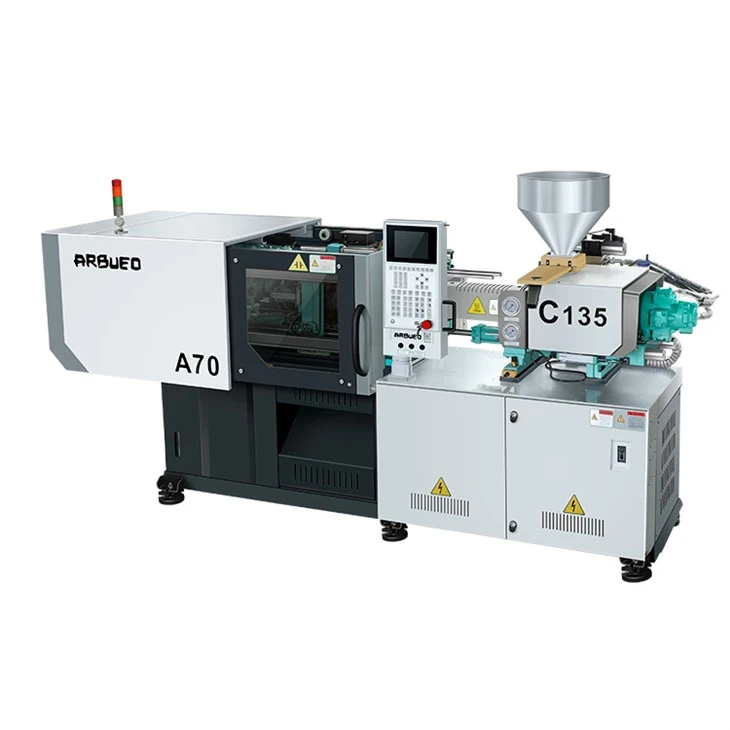

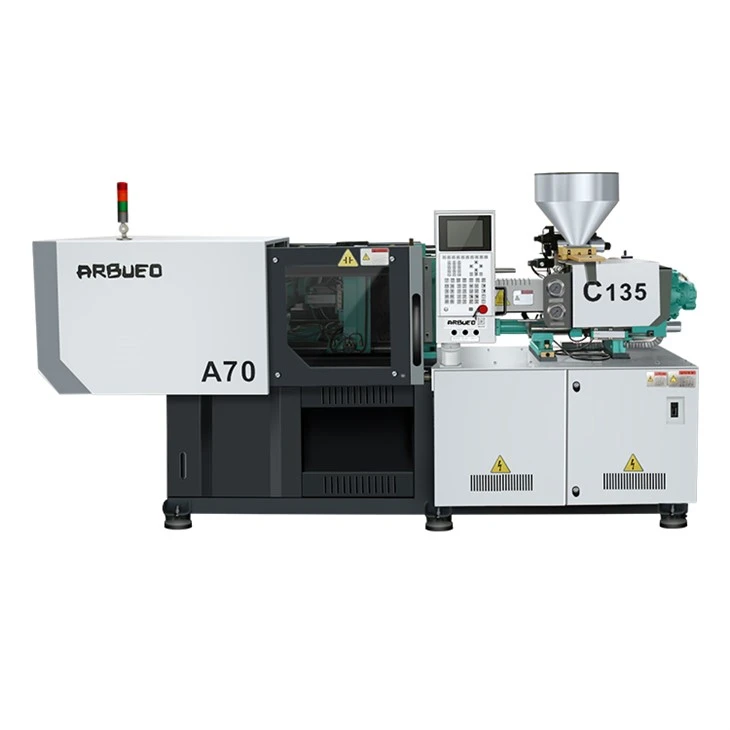

ARBUEO A70T hybrid txhaj tshuaj molding tshuab yog cov khoom siv txhaj tshuaj molding nrog kev ua haujlwm siab, txuag hluav taws xob, kev tiv thaiv ib puag ncig thiab kev ua haujlwm siab heev. Nws yuav muab ntau txhim khu kev qha thiab ruaj khov kev daws teeb meem rau kev tsim khoom lag luam thiab coj ntau dua kev lag luam thiab ib puag ncig zoo rau cov lag luam.
Parameter:
|
Qauv |
A70/C130 |
|||
|
INJECTION UNI |
|
A |
B |
C |
|
Ntsia taub hau |
MM |
28 |
30 |
32 |
|
Ntsia Hlau L / D piv |
L/D |
20.1 |
18.8 |
17.6 |
|
Theoretical txhaj tshuaj volum |
CM^3 |
72 |
82 |
94 |
|
Tua hnyavPS |
g |
65 |
74 |
85 |
|
Txhaj tshuaj |
Mpa |
179 |
156 |
137 |
|
Max ntsia hlau ceev |
rpm ua |
220 |
||
|
CIAMPING SYSTEM |
|
|
||
|
Clamping quab yuam |
kn |
700 |
||
|
Qhib stroke |
mm |
255 |
||
|
Kev ncua deb ntawm txoj hlua khi |
mm |
290x270 |
||
|
Max.mould qhov siab |
mm |
315 |
||
|
Min. pwm qhov siab |
mm |
80 |
||
|
Ejector stroke |
mm |
64 |
||
|
Ejector zog |
kn |
31 |
||
|
Lwm tus |
|
|
||
|
Max. Pump Siab |
Mpa |
140 |
||
|
Pump Lub cev muaj zog |
Kw |
11 |
||
|
Rhaub Fais Fab |
Kw |
6.3 |
||
|
Tshuab Dimension (L × W × H) |
m |
3.8x1x1.8 |
||
|
Tshuab hnyav |
t |
2.5 |
||
|
Hopper Peev Xwm |
Kg |
25 |
||
|
Roj Tank Peev Xwm |
L |
95 |
||
Lub tshuab hybrid txhaj tshuaj molding tshuab muaj ntau cov thev naus laus zis tshiab thiab cov qauv tsim tshwj xeeb, muab kev sib tw tseem ceeb hauv kev txhaj tshuaj molding kev lag luam. Nws siv lub zog tsav hluav taws xob kom ua tiav qhov pib ceev, kev ua haujlwm siab thiab kev tswj xyuas meej. Nws tseem tau nruab nrog lub tshuab hydraulic siab heev uas tuaj yeem muab kev txhaj tshuaj ruaj khov thiab kev tswj xyuas kom muaj kev ruaj ntseg thiab sib xws ntawm cov khoom zoo. Nyob rau tib lub sijhawm, nws kuj muaj qhov hloov pauv tsis siv neeg, uas tuaj yeem txheeb xyuas thiab kho cov txheej txheem tsis zoo kom hloov mus rau cov khoom xav tau sib txawv.
Qhov zoo:
1. Kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig: Cov roj-hluav taws xob hybrid txhaj tshuaj molding tshuab txais lub tshuab ntsiag to thiab hydraulic system, uas tsis yog tsuas yog muaj suab nrov, tab sis kuj tseem txuag hluav taws xob ntau dua thiab zoo ib puag ncig.
2. High precision: Cov roj-hluav taws xob hybrid txhaj tshuaj molding tshuab muaj kev tswj hluav taws xob servo, uas tuaj yeem ua kom ntseeg tau siab ntawm cov khoom tsim.
3. Kev ruaj ntseg zoo: Lub tshuab hybrid txhaj tshuaj molding yuav tsis ua rau muaj kev cuam tshuam, suab nrov, lossis roj kub nce thaum lub sijhawm ua haujlwm, yog li ua kom nws ruaj khov.
4. Cov cuab yeej siv siab: Cov khoom siv ntawm cov roj-hluav taws xob hybrid txhaj tshuaj molding tshuab yog cov khoom lag luam thoob ntiaj teb, nrog kev tsim khoom zoo thiab kev pab lub neej ntev.
FAQ:
Q: Lub sijhawm txias ntawm lub tshuab txhaj tshuaj molding txhais li cas?
A: Lub sijhawm txias yog hais txog lub sijhawm lub tshuab txhaj tshuaj molding tos cov yas hauv pwm kom txias thiab khov tom qab txhaj tshuaj molding tiav.
Q: Vim li cas pwm kub tswj ntawm lub tshuab txhaj tshuaj molding tseem ceeb?
A: Pwm tswj qhov kub thiab txias ncaj qha cuam tshuam rau melting, txhaj tshuaj thiab txias txheej txheem ntawm cov yas thiab yog qhov tseem ceeb hauv kev ua kom cov khoom zoo.
